آلة تصنيع قوالب الثلج الأوتوماتيكية

/ CBFI 30 طن لكل 24 ساعة آلة تصنيع قوالب الثلج الأوتوماتيكية

CBFI 30 طن لكل 24 ساعة آلة تصنيع قوالب الثلج الأوتوماتيكية


  • ماركة:

    CBFI
  • رقم الصنف.:

    ABI300
  • ميناء الشحن:

    Guangzhou Port
  • ضمان:

    1 year
  • تفاصيل المنتج
  • فيديو

CBFI ABI300 30 طن لكل 24 ساعة آلة كتلة الجليد

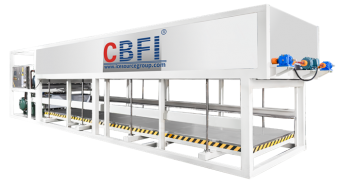

large automatic ice block machine


CBFI مزايا آلة كتلة الجليد التلقائي


1. كفاءة التبادل الحراري وحماية البيئة والسلامة

2. التجديد التلقائي للمياه ، التذويب التلقائي

3. ال قوالب الثلج نظيفة وصحية ، تصل إلى معايير صالحة للأكل


تفاصيل الجهاز






المعلمات


ABI300 معلمات آلة تصنيع قوالب الثلج الأوتوماتيكية
اسم وحدة معامل
هانبيل معلمة ضاغط نموذج RC2-550B
تبريد القدرة (كيلو واط) 311.1
الطاقة (كيلوواط) 141.4
درجة حرارة التكثيفدرجة مئوية (℃) 38
درجة حرارة التبخردرجة مئوية (℃) -15
درجة الحرارة المحيطةدرجة مئوية (℃) 28
درجة حرارة الماءدرجة مئوية (℃) 16
المبردات R507
الجهد االكهربى الخامس / P / هرتز 380 / 3 / 50
رفع المحرك الطاقة (كيلوواط) 11
برج التبريد الطاقة (كيلوواط) 2.2
مضخة التبريد الطاقة (كيلوواط) 7.5
50 كجم كتلة الجليدبعد الجليد L * W * H (مم) 435 * 150 * 850
مزدوج مبخر أبعاد الآلة L * W * H (مم) 11000 * 2240 * 2500 * 2
المبخر
3200 * 2000 * 2500 وحدة ضاغط
مفردة مبخر أبعاد الآلة L * W * H (مم) 14000 * 2900 * 2650
المبخر
3200 * 2000 * 2500 وحدة ضاغط

صنع كتلة الجليد












رقابة جودة













لا شيء
